Inductive Capacitive Loads
PEM.INCAP.02.A.CONX
Description:
PEModule PLUGY EDU INDUCTIVE/CAPACITIVE LOAD module is comprised of three high-frequency inductors and three high frequency Electrolytic film capacitors for different configuration and connection coverage different applications.
Main Features:
- Appropriate for DC single-phase capacitive Load with different parallel and series configurations.
- Appropriate for AC/DC single-phase inductive Load with different parallel and series configurations.
- Appropriate for DC single-phase low pass filter.

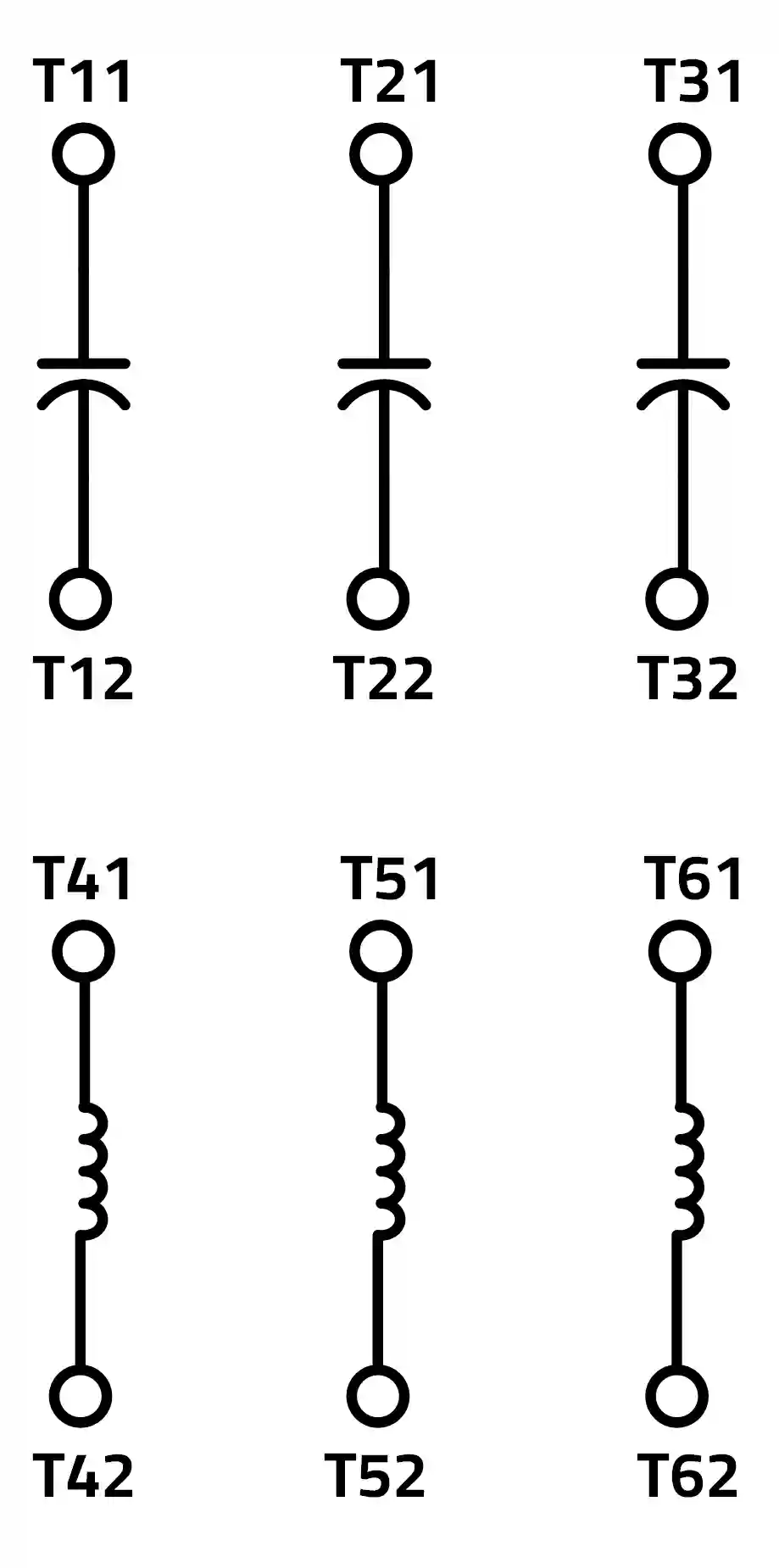

- Three separate DC capacitors for different configurations, and three separate inductors for different configurations.
- Clear transparent back cover for system components demonstration.
- Upgradable (easy to replace).
- Heavy duty compact size steel enclosure for high durability and easy to move.
Follow us
Capacitor Characteristics
Capacitor Characteristics
| PLUGY SYSTEM Part no. | C (μF) | VAC Max(V) | Iripp (A) |
|---|---|---|---|
| PEM.EDU.IND.CAP.ELEC.1.A. xx.x.x.xxx 0800.00075 | 75 | 800 | 0.76 |
| PEM.EDU.IND.CAP.ELEC.1.A. xx.x.x.xxx 0400.00150 | 150 | 400 | 0.76 |
| PEM.EDU.IND.CAP.ELEC.1.A. xx.x.x.xxx 0450.00390 | 390 | 450 | 2 |
| PEM.EDU.IND.CAP.ELEC.1.A. xx.x.x.xxx 0450.00330 | 330 | 450 | 2.1 |
| PEM.EDU.IND.CAP.ELEC.1.A. xx.x.x.xxx 0450.00220 | 220 | 450 | 1.2 |
| PEM.EDU.IND.CAP.ELEC.1.A. xx.x.x.xxx 0250.01000 | 1000 | 250 | 3.3 |
| PEM.EDU.IND.CAP.ELEC.1.A. xx.x.x.xxx 0250.00680 | 680 | 250 | 2.5 |
PEM.EDU.IND.CAP.ELEC.1.A. xx.x.x.xxx 0250.00470 | 470 | 250 | 1.4 |
| PEM.EDU.IND.CAP.ELEC.1.A. xx.x.x.xxx 0063.04700 | 4700 | 63 | 3.5 |
| PEM.EDU.IND.CAP.ELEC.1.A. xx.x.x.xxx 0063.03300 | 3300 | 63 | 2.7 |
| PEM.EDU.IND.CAP.ELEC.1.A. xx.x.x.xxx 0035.10000 | 10000 | 35 | 3.5 |
| PEM.EDU.IND.CAP.ELEC.1.A. xx.x.x.xxx 0800.00195 | 195 | 800 | 2 |
| PEM.EDU.IND.CAP.ELEC.1.A. xx.x.x.xxx 0800.00165 | 165 | 800 | 2.1 |
| PEM.EDU.IND.CAP.ELEC.1.A. xx.x.x.xxx 0400.00300 | 300 | 400 | 1.52 |
| PEM.EDU.IND.CAP.ELEC.1.A. xx.x.x.xxx 0450.00780 | 780 | 450 | 4 |
| PEM.EDU.IND.CAP.ELEC.1.A. xx.x.x.xxx 0450.00660 | 660 | 450 | 4.2 |
PEM.EDU.IND.CAP.ELEC.1.A. xx.x.x.xxx 0450.00440 | 440 | 450 | 2.4 |
| PEM.EDU.IND.CAP.ELEC.1.A. xx.x.x.xxx 0250.02000 | 2000 | 250 | 6.6 |
| PEM.EDU.IND.CAP.ELEC.1.A. xx.x.x.xxx 0250.01360 | 1360 | 250 | 1.4 |
| PEM.EDU.IND.CAP.ELEC.1.A. xx.x.x.xxx 0250.00940 | 940 | 250 | 2.8 |
| PEM.EDU.IND.CAP.ELEC.1.A. xx.x.x.xxx 0063.09400 | 9400 | 63 | 7 |
PEM.EDU.IND.CAP.ELEC.1.A. xx.x.x.xxx 0063.06600 | 6600 | 63 | 5.4 |
| PEM.EDU.IND.CAP.ELEC.1.A. xx.x.x.xxx 0035.20000 | 20000 | 35 | 7 |
Inductor Characteristics
Inductor Characteristics
| Part no. | H Initial (μH) | H @IDC Max (μH) | IDC Max (A) |
|---|---|---|---|
| PEM.EDU.IND.CAP.ELEC.1.A. 07.0.0.100 xxxx.xxxxx | 100 | 63 | 7 |
| PEM.EDU.IND.CAP.ELEC.1.A. 05.8.0.220 xxxx.xxxxx | 220 | 124 | 5.8 |
| PEM.EDU.IND.CAP.ELEC.1.A. 05.2.0.330 xxxx.xxxxx | 330 | 174 | 5.2 |
| PEM.EDU.IND.CAP.ELEC.1.A. 03.8.0.470 xxxx.xxxxx | 470 | 271 | 3.8 |
| PEM.EDU.IND.CAP.ELEC.1.A. 03.4.0.680 xxxx.xxxxx | 680 | 370 | 3.4 |
| PEM.EDU.IND.CAP.ELEC.1.A. 02.4.1.000 xxxx.xxxxx | 1000 | 593 | 2.4 |
| PEM.EDU.IND.CAP.ELEC.1.A. 07.0.0.100 xxxx.xxxxx | 100 | 63 | 7 |
| PEM.EDU.IND.CAP.ELEC.1.A. 07.0.0.200 xxxx.xxxxx | 200 | 126 | 7 |
| PEM.EDU.IND.CAP.ELEC.1.A. 05.2.0.660 xxxx.xxxxx | 660 | 348 | 5.2 |
PEM.EDU.IND.CAP.ELEC.1.A. 03.8.0.940 xxxx.xxxxx | 940 | 542 | 3.8 |
| PEM.EDU.IND.CAP.ELEC.1.A. 02.4.2.000 xxxx.xxxxx | 2000 | 1183 | 2.4 |
| PEM.EDU.IND.CAP.ELEC.1.A. 03.4.1.360 xxxx.xxxxx | 1360 | 740 | 2.4 |
| PEM.EDU.IND.CAP.ELEC.1.A. 07.0.0.300 xxxx.xxxxx | 300 | 189 | 7 |
| PEM.EDU.IND.CAP.ELEC.1.A. 05.8.0.660 xxxx.xxxxx | 660 | 372 | 5.8 |
| PEM.EDU.IND.CAP.ELEC.1.A. 05.2.0.990 xxxx.xxxxx | 990 | 522 | 5.2 |
| PEM.EDU.IND.CAP.ELEC.1.A. 03.8.1.410 xxxx.xxxxx | 1410 | 813 | 3.8 |
| PEM.EDU.IND.CAP.ELEC.1.A. 03.4.2.040 xxxx.xxxxx | 2040 | 1110 | 3.4 |
| PEM.EDU.IND.CAP.ELEC.1.A. 02.4.3.000 xxxx.xxxxx | 3000 | 1779 | 2.4 |
